Overview

This project consisted of modeling and simulating a vertical CNC router using MATLAB. The system was designed to demonstrate position control over two perpendicular linear axes (X and Y), mimicking the behavior of a basic CNC machine.

The model includes actuator dynamics, position feedback, and trajectory generation, with the control logic implemented in discrete time using PID controllers.

Key Features

  • 2-axis CNC system simulation

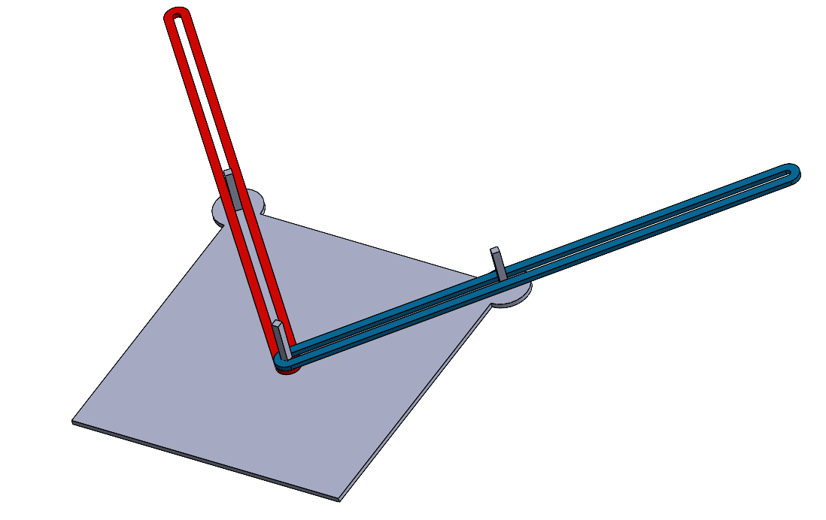

  • Upright router configuration modeled in 3D CAD
  • Discrete PID control implemented in MATLAB

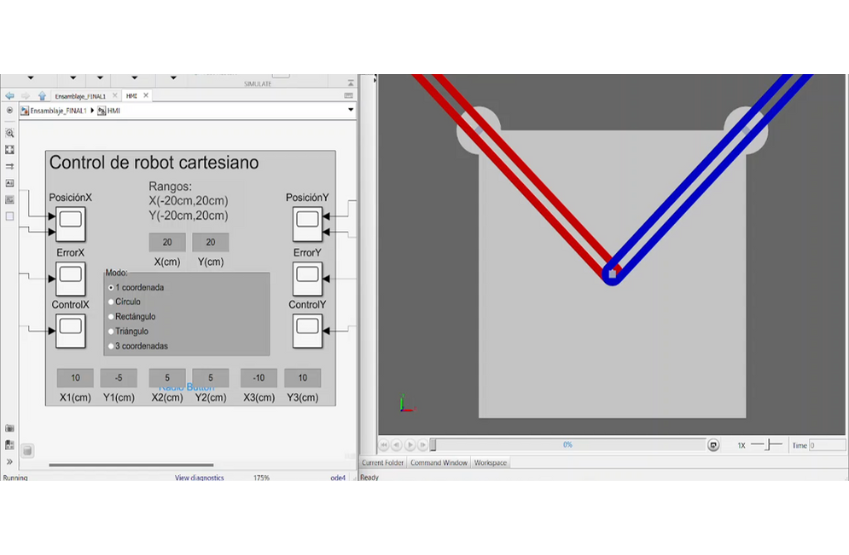

  • Visualization of tool motion and path tracking
  • Position reference generation for square and circular trajectories

Technologies Used

  • MATLAB and Simulink
  • Control System Toolbox
  • SolidWorks for mechanical modeling
