Overview

This module connects sensors from a driving simulator using RJ45 Keystone jacks and custom wiring. It includes signals such as blinkers, gear selector, handbrake, seatbelt, and ignition. Each sensor is mapped to a virtual joystick button through a USB HID interface.

The firmware handles input logic and emulates a USB joystick using the Joystick.h library. The module is housed in a 3D-printed case and has a custom PCB prepared for future versions.

Key Features

  • Plug-and-play sensors via RJ45 connectors
  • Arduino Pro Micro with custom firmware
  • Logical handling of multiple inputs
  • 3D printed enclosure, PCB-ready for future upgrade
  • Real-time USB joystick mapping.

Technologies Used

  • 3D CAD (SolidWorks)
  • PCB design (KiCad)
  • Arduino C++
  • Joystick.h HID library
  • 3D printing

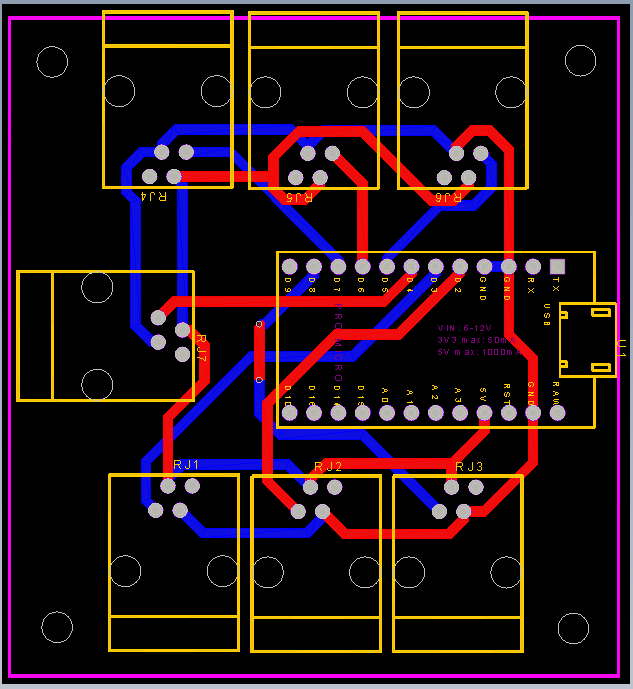

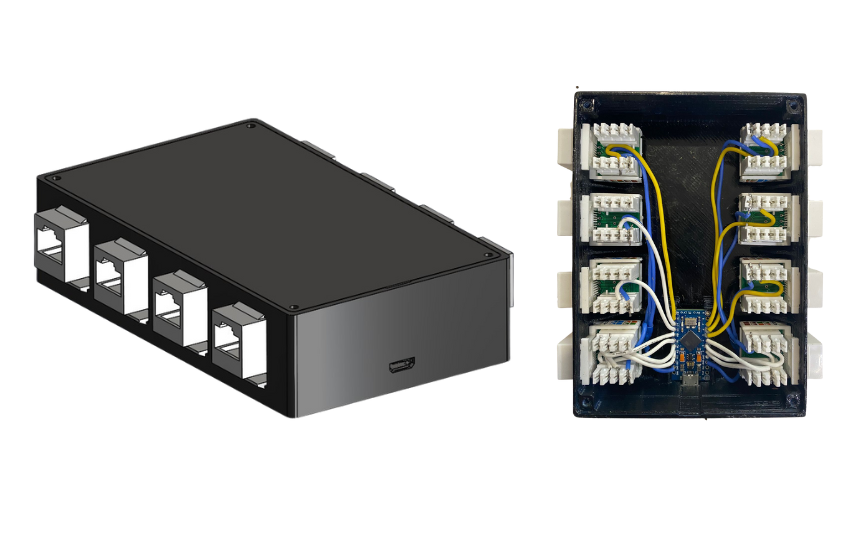

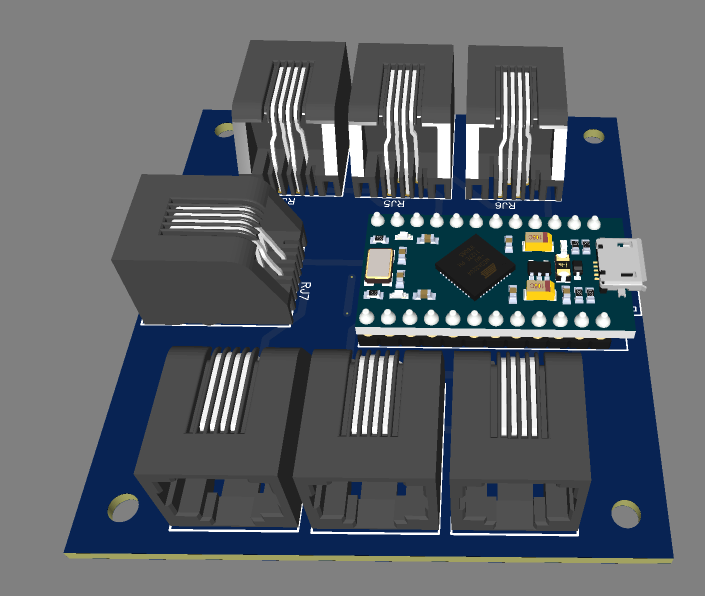

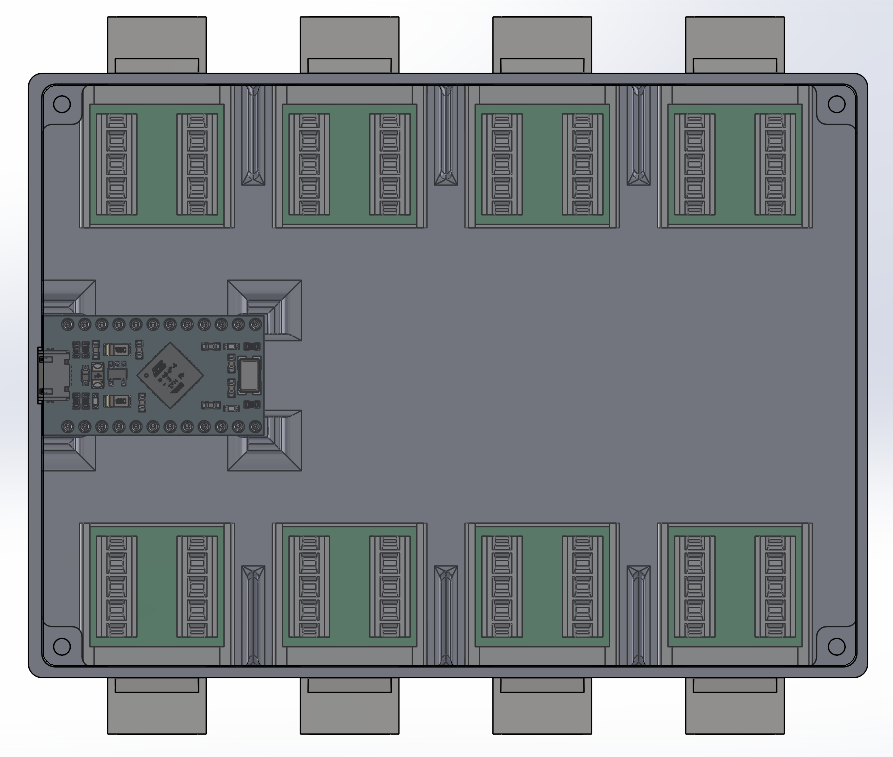

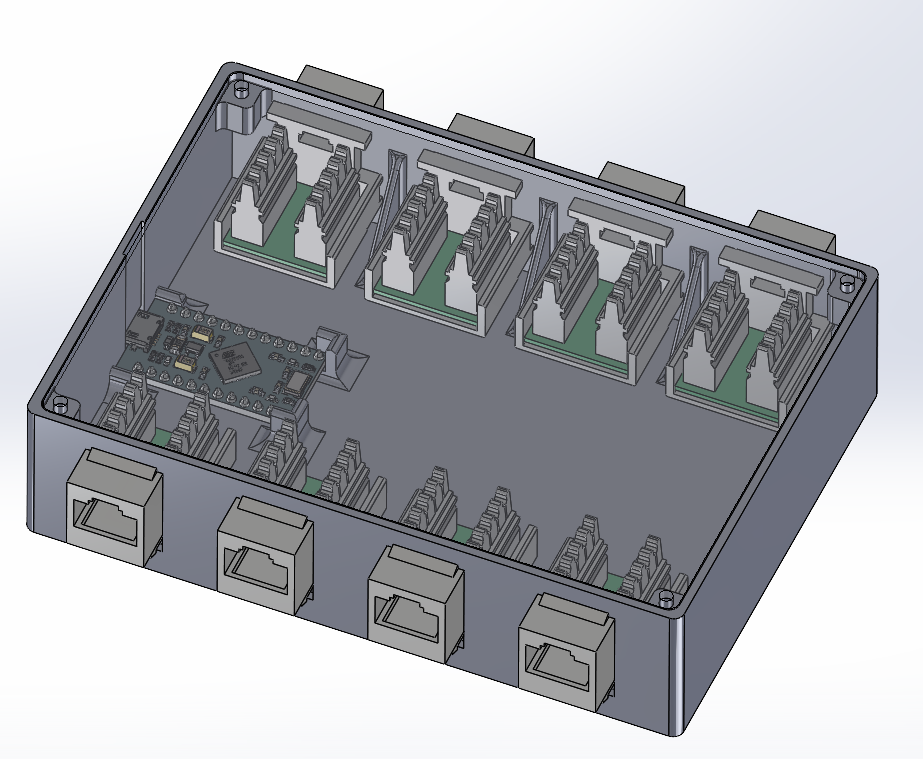

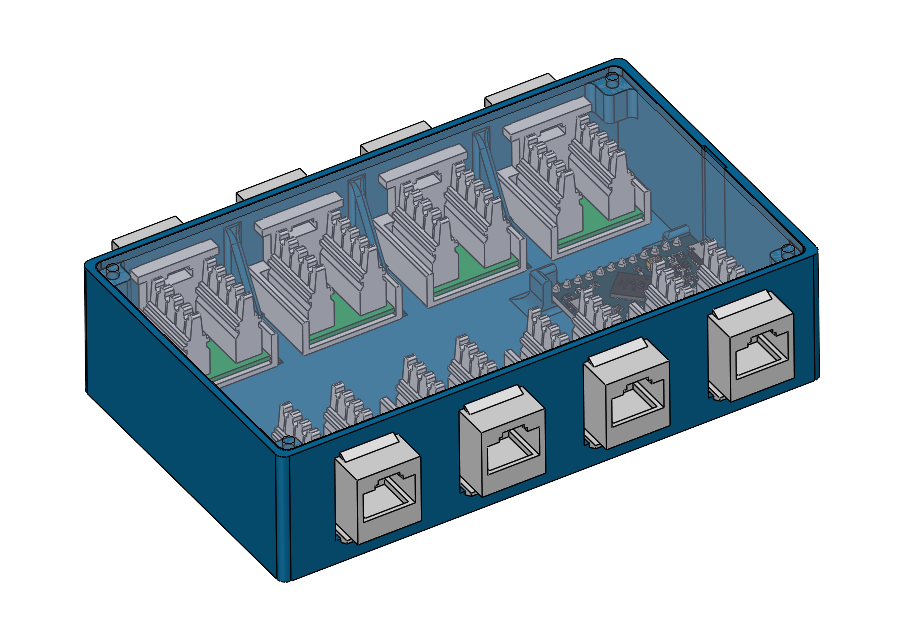

Top View Angled View Final Assembly PCB Layout Module PCB module PCB 2 module_N
