Overview

This project consists of a laser harp, an interactive musical instrument that generates sound when a user interrupts visible laser beams with their hand. Each laser beam corresponds to a musical note. When the beam is blocked, the system detects the change and activates a tone through a built-in speaker.

The device is built on a curved wooden and plastic frame with multiple red laser diodes aligned with photodetectors (photodiodes). An Arduino microcontroller continuously reads each sensor and triggers a specific tone based on which beam was interrupted. A rotary selector allows the user to switch between rhythm or tone modes.

How It Works

Each laser diode is aligned with a corresponding photodiode. When the beam reaches the sensor, the voltage level remains stable. When a hand blocks the beam, the Arduino detects the voltage drop and activates the sound associated with that position. The tones are generated programmatically within the Arduino.

Main Features

  • Sound triggering via visible laser beam interruption
  • Use of red laser diodes and aligned photodiodes
  • Arduino-controlled tone generation
  • Mode selection using rotary knob
  • Integrated speaker for audio output

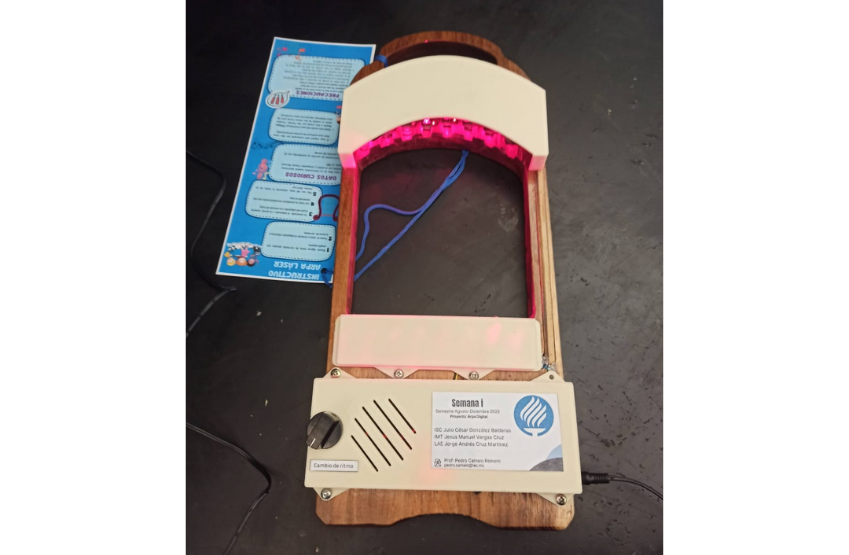

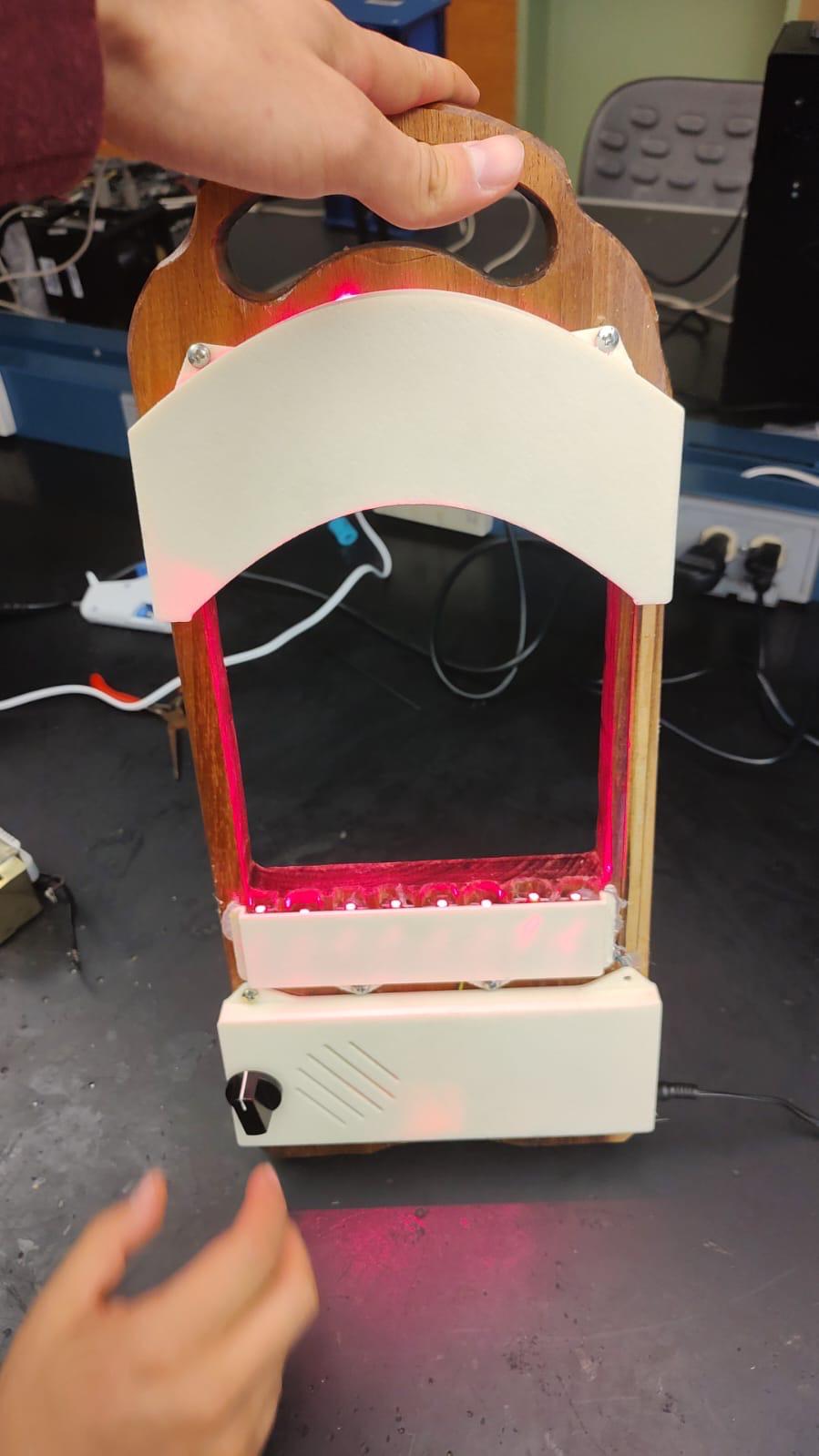

Laser Harp - Front View Laser Harp - Side View
