Overview

This project corresponds to the development of the low-level control system for the KUKA iDo robot. The system is based on a custom PCB and embedded firmware running on a Raspberry Pi Pico W. It is responsible for real-time motor control, sensor acquisition, and communication with the high-level ROS 2 system via micro-ROS.

The firmware was developed in C++ using the official Pico SDK. All logic is executed within a centralized class that integrates control loops, sensor processing, and communication tasks.

Functionalities

  • Velocity control using dual PID loops and encoder feedback
  • Odometry estimation based on differential kinematics
  • micro-ROS integration for ROS 2 topic subscription and publication
  • Real-time acquisition of bumper states, battery levels, and IMU data
  • LED status indication controlled via ROS messages
  • Time synchronization for proper timestamping in ROS 2 environments

Architecture

  • Microcontroller: RP2040 (Raspberry Pi Pico W)
  • Firmware: Custom C++ application with Pico SDK and micro-ROS

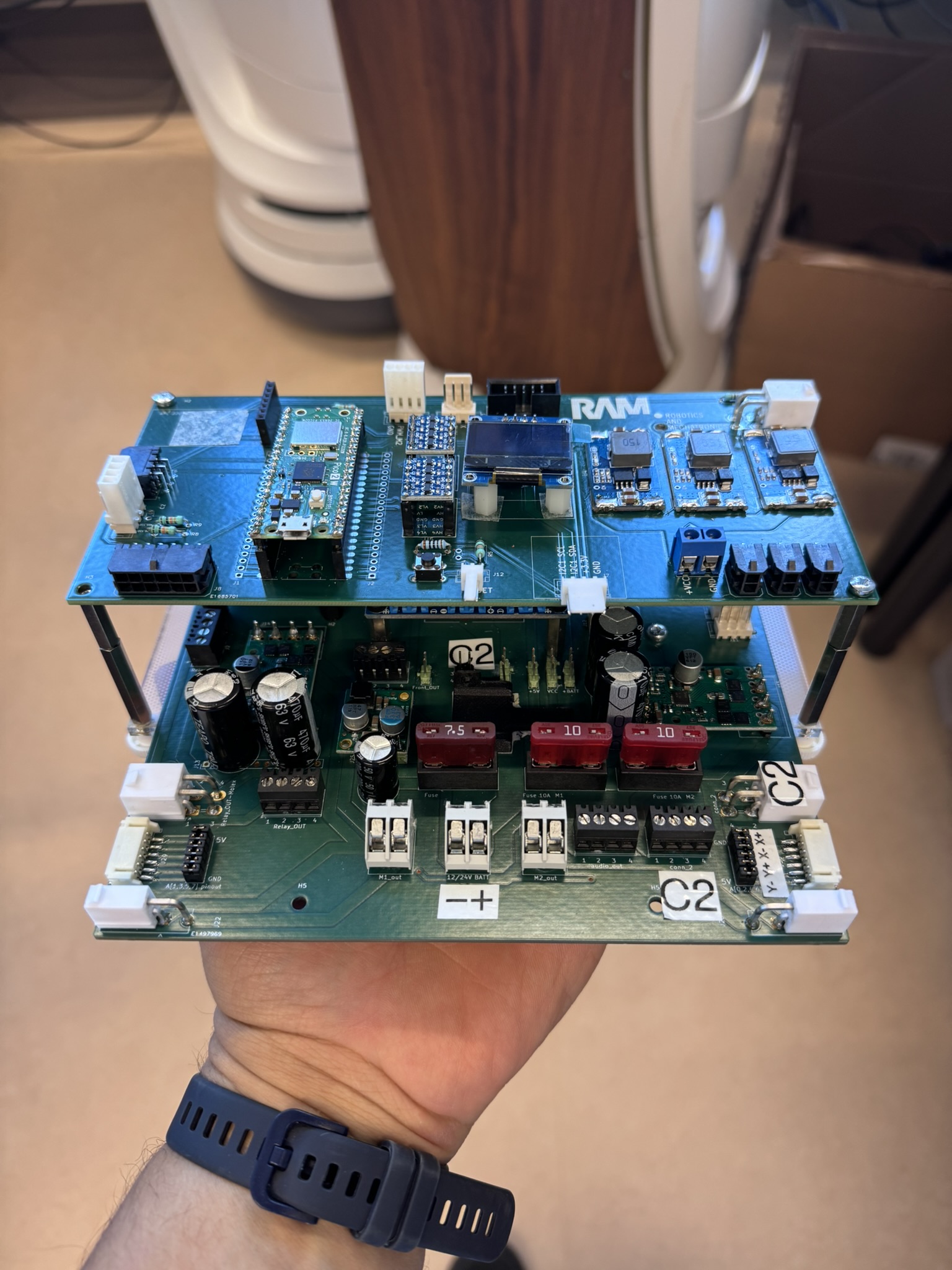

  • PCB: Custom-designed board with motor drivers, sensor connectors, and power regulation

Technologies Used

  • C++ (bare-metal with Pico SDK)
  • micro-ROS
  • Differential drive odometry
  • Custom PCB design (KiCad)
  • UART, I2C, and PIO peripherals
  • ROS 2 Jazzy for system integration

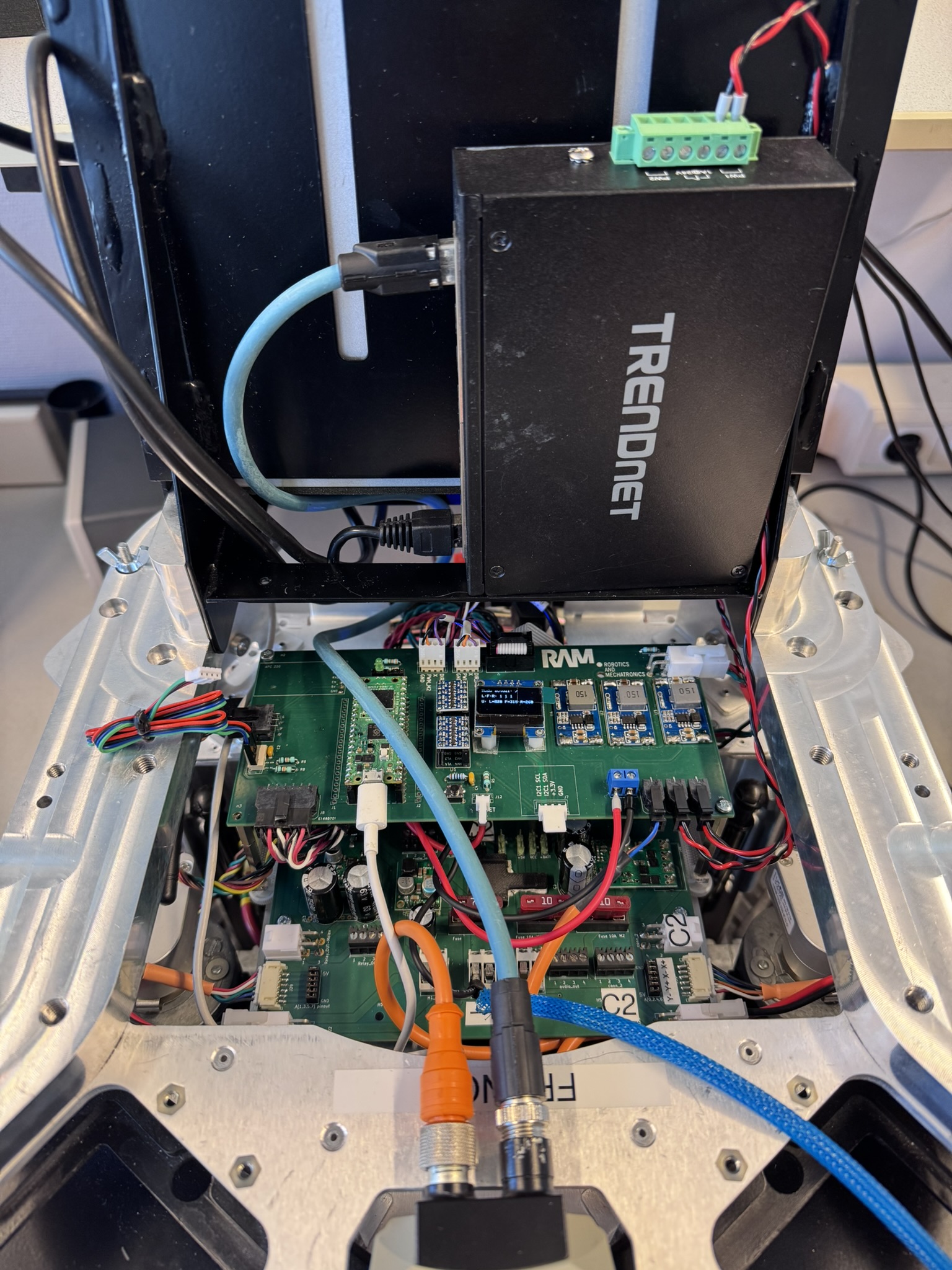

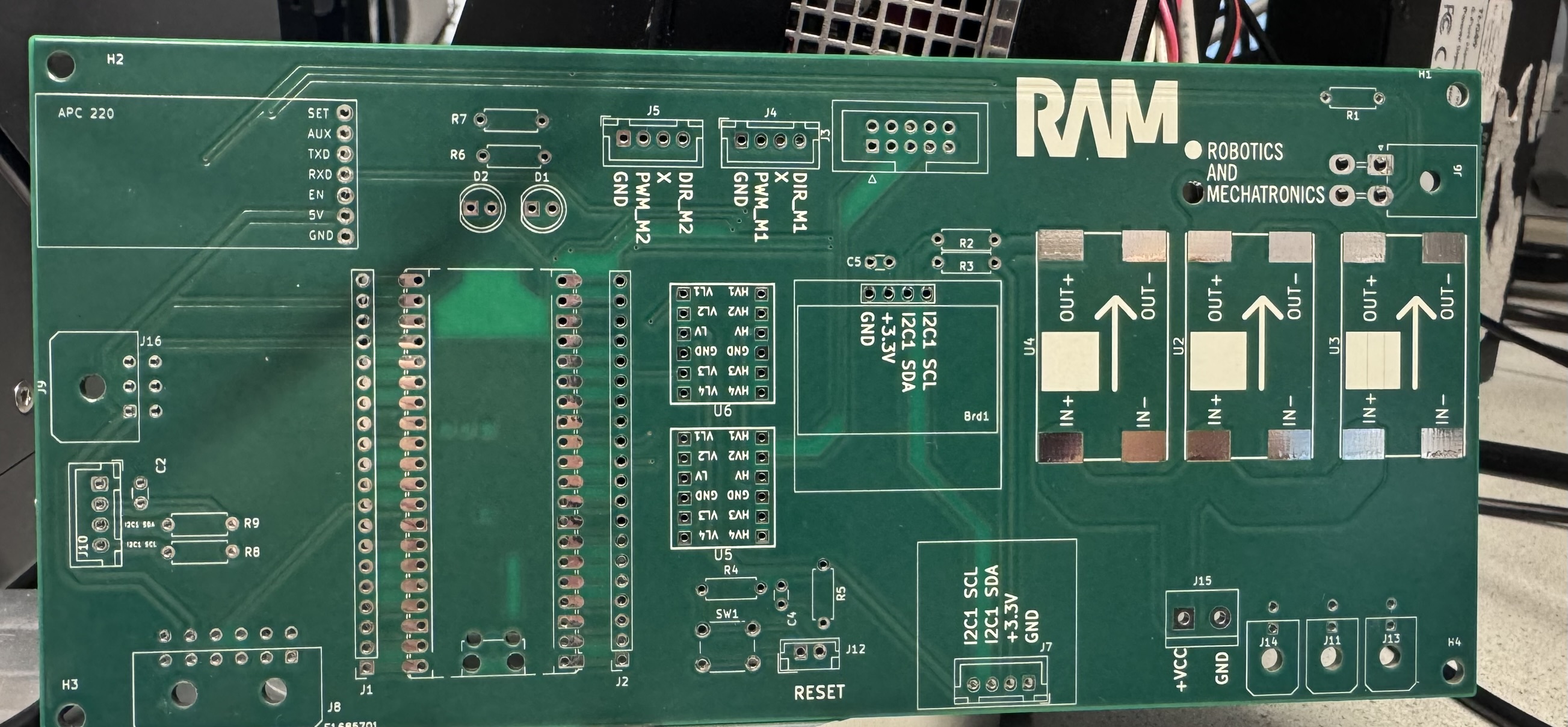

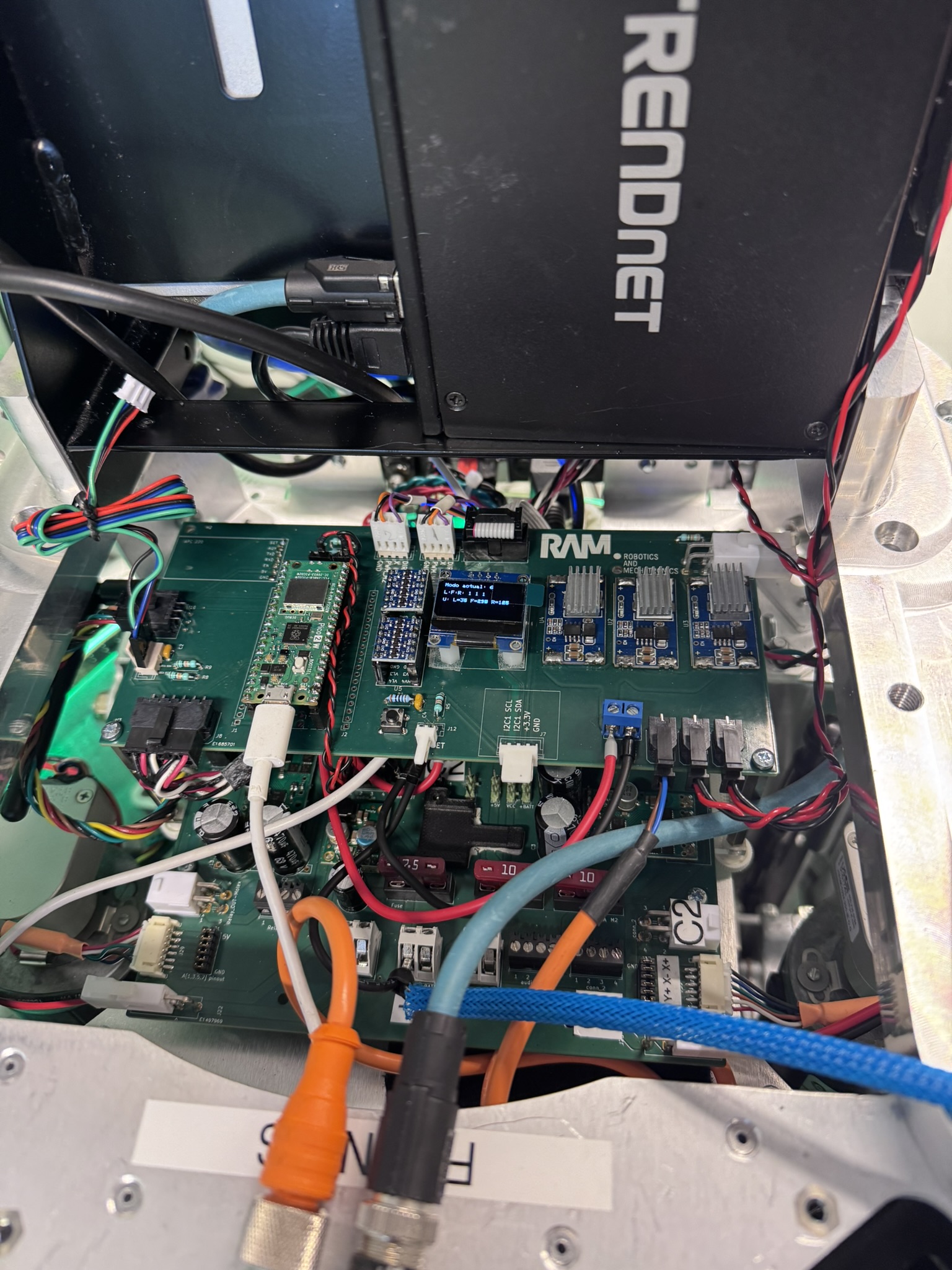

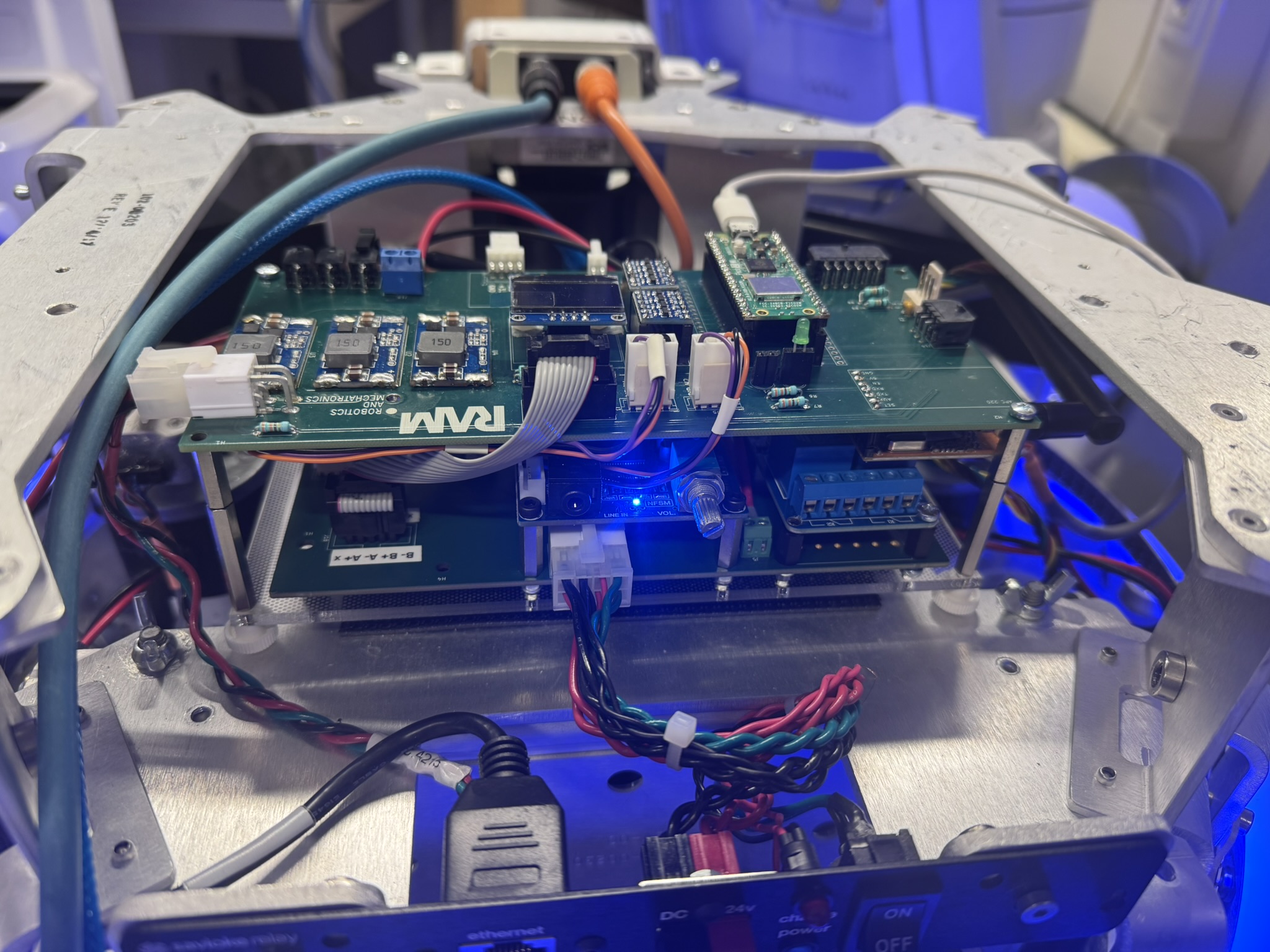

Low-Level PCB PCB Mounted System on Robot Mounted System on Robot Mounted System on Robot
