Self-Targeting Laser Turret
Overview
This project involved designing and implementing a two-axis laser turret capable of tracking a moving red circular target in real-time. The system integrates a webcam, MATLAB for image processing, and an Arduino for PID-based actuation. The goal was to keep a laser pointer aimed at the target within a 1 m × 1 m workspace for at least 20 continuous seconds.
System Description

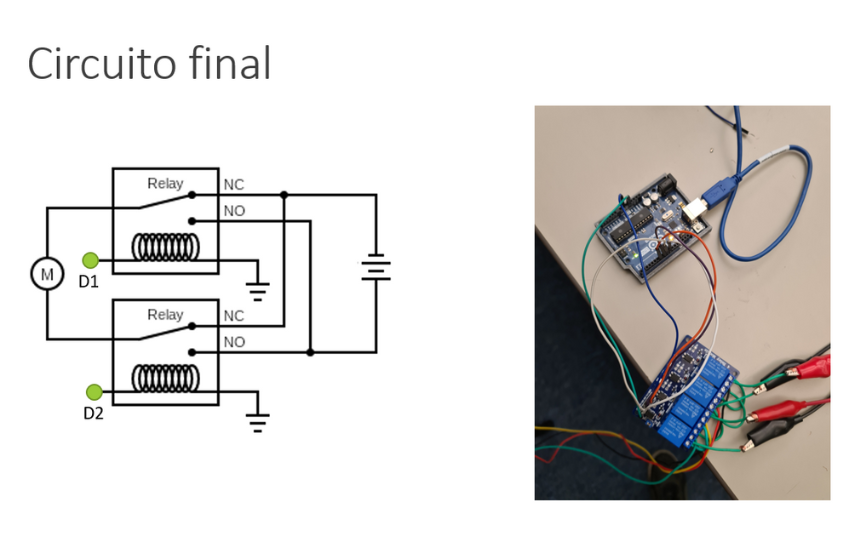

The vision subsystem detects the position of a red object using color segmentation in MATLAB. This position is sent to the Arduino through serial communication. The Arduino processes the coordinates and drives two DC motors via a manually tuned PID controller to align the turret accordingly.
Main Features
- Real-time red target detection via webcam
- Manual PID control for dual-axis DC motor actuation
- Two degrees of freedom for turret motion
- Continuous laser alignment to follow the target
- Data visualization and signal plotting in MATLAB
- Mechanical model and structure designed in SolidWorks
Technologies Used
- MATLAB with Image Processing Toolbox
- Arduino UNO
- Serial Communication Protocol
- SolidWorks for mechanical design
- Custom PID control implementation in C++
Results

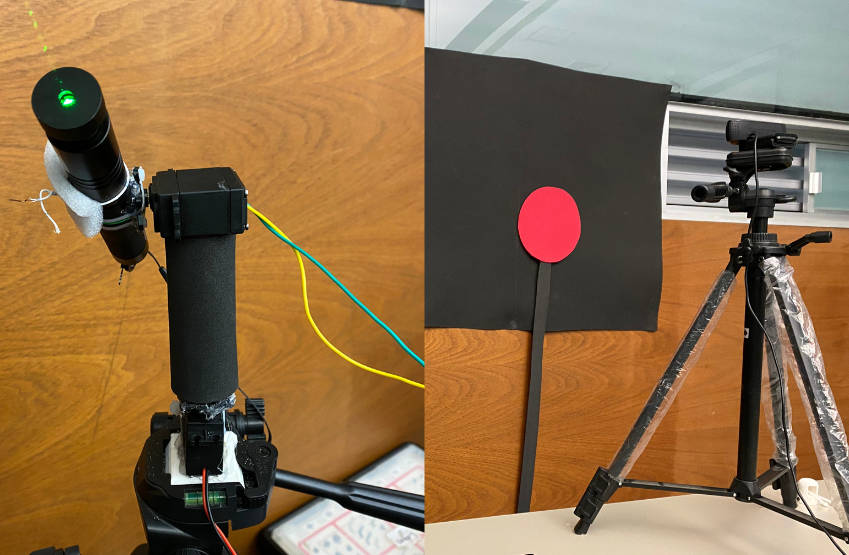

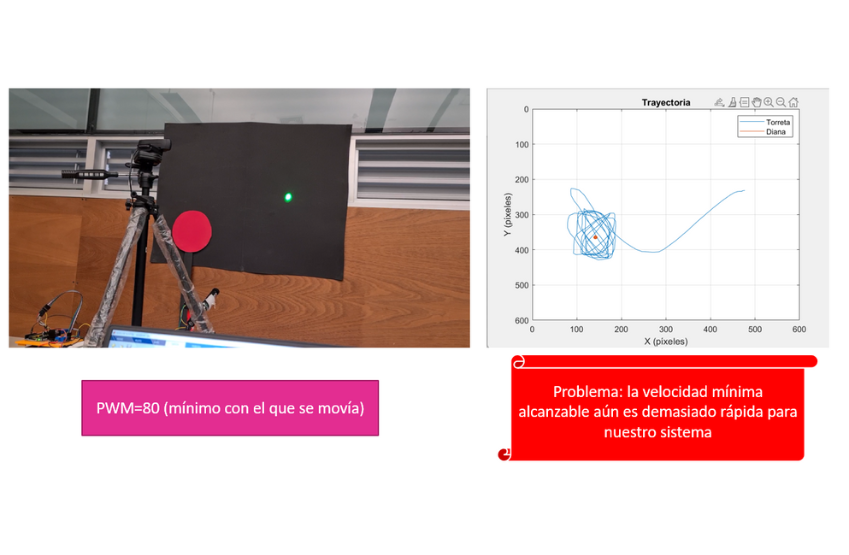

- Maintained laser alignment with a moving target
- Stability confirmed under variable motion conditions

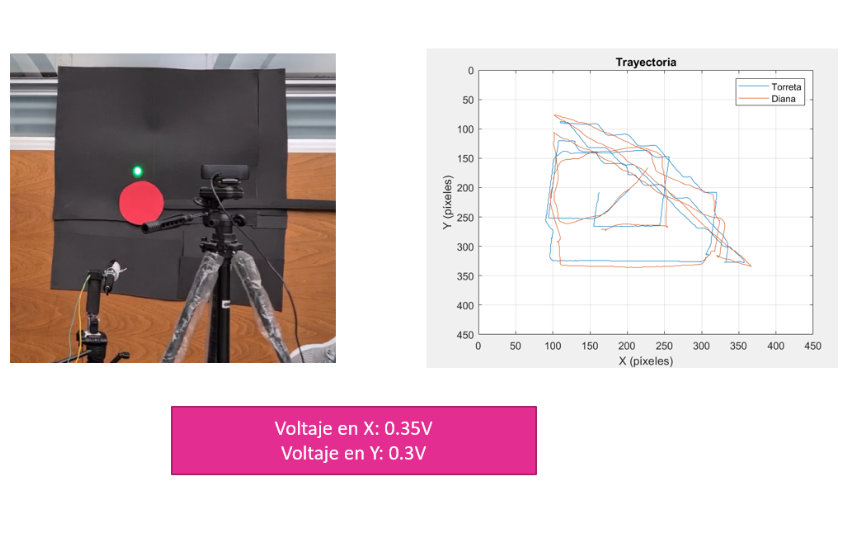

- Visualization of position data and control signals
